Survitec Halo Crew EBS

Description:

Personal emergency breathing system made to the latest standards within helicopter safety for crew. With a 0.32 litre cylinder and 310 bar pressure, this sytem provides almost 100 litres of breathable air.

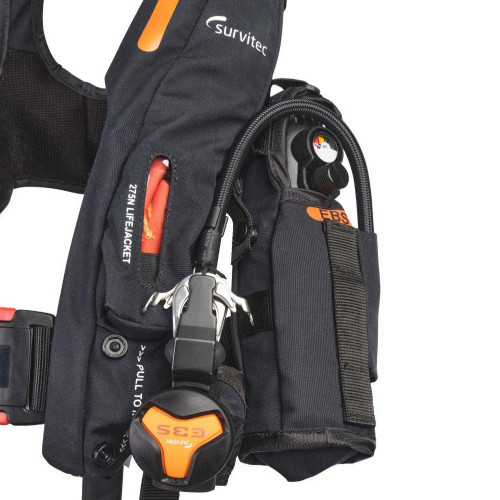

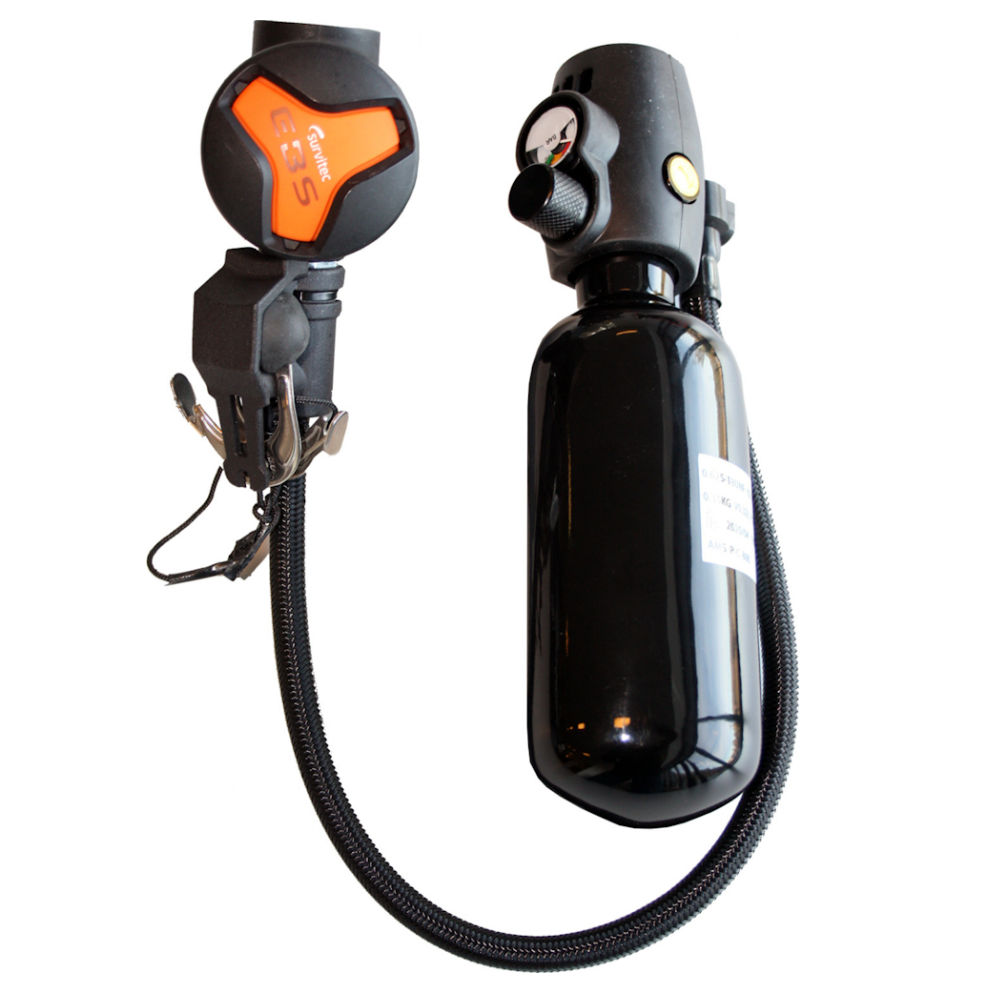

The Halo aircrew lifejacket is available with a fully integrated Emergency Breathing System (EBS). The bespoke Survitec EBS has been designed to be deployed in one swift movement and features a carbon composite cylinder, braided low pressure hose and second stage with integrated nose clip. The bespoke Category A EBS features a mouthpiece integrated with the nose clip. Weighing in at just 949g, the EBS is 43% lighter than previous Survitec models and 30% lighter than competing products. The Civil Aviation Authority CAP 1034 guidelines (Development of a Technical Standard for Emergency Breathing Systems) states that EBS should provide sufficient air supply for 60 seconds of breathing time at a depth down to 2m. With a working pressure of 310 bar, the cylinder provides 80% more breathable air than the industry minimum standard

Product Features:

• CAPACITY TO HOLD 99.2LT OF BREATHABLE AIR - PROVIDING 80% MORE BREATHABLE AIR THAN THE INDUSTRY MINIMUM STANDARD
• READY TO USE - SIMPLY BY PUTTING THE MOUTHPIECE INTO USERS MOUTH ASTRAINED AND BREATHE NORMALLY
• FEATURES COLOUR CODED CONTENTS GAUGE WHICH INDICATES CYCLINDER’S PRESSURE

Specifications:

• Cylinder in carbon composite material with a 0.32 litre capacity
• Lightweight system - less than 1.0kg
• 310 bar pressure provides approximately 100 litres of breathable air
• First stage regulator protected with rubber cap for longevity
• Ergonomic mouthpiece with metal nose clip from Makefast that fits most noses
• Gauge with colour codes and units
• Certified in accordance with EN 4856:2018 EBS
• Compatible with the Halo Aircrew Life Jacket
