Submersible Systems HEED 3, 200 Series

DESCRIPTION

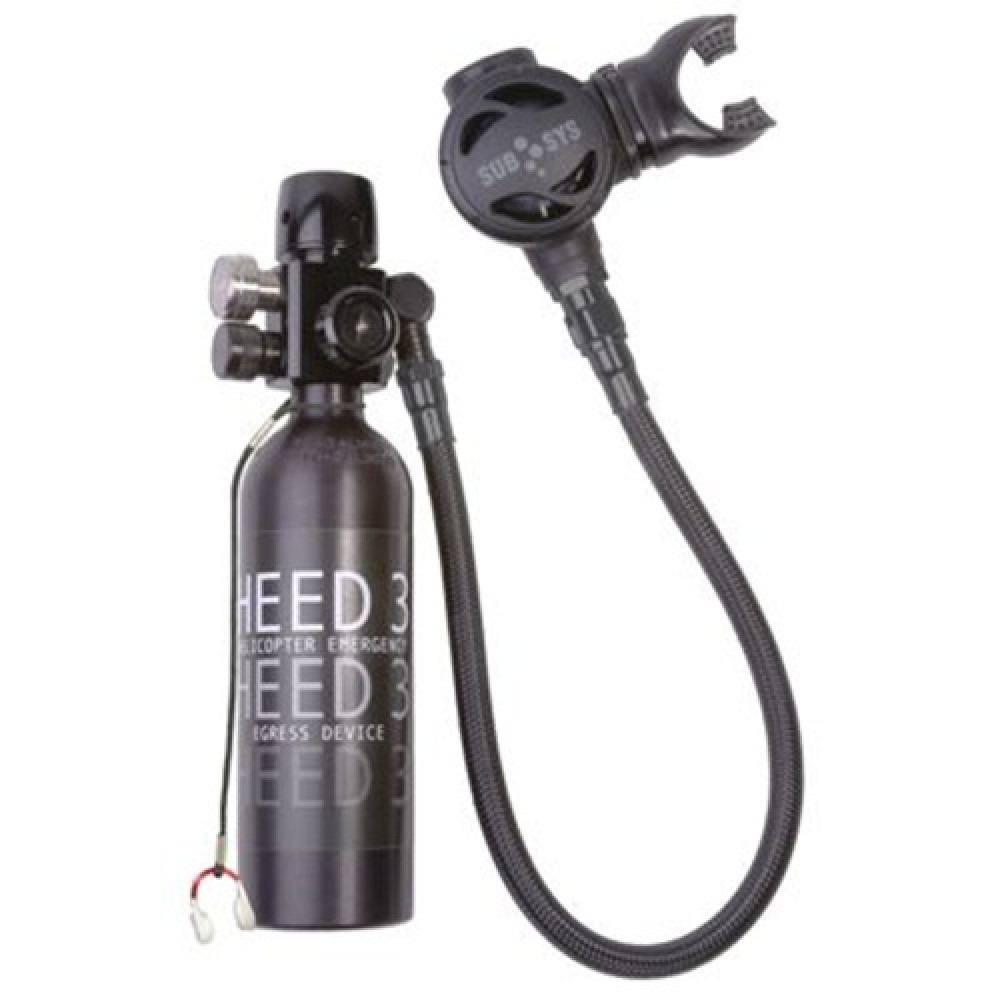

The Helicopter Emergency Egress Device (HEED 3) is a compact, lightweight and reliable Category A device designed to increase survivability in case of an unintended submersion in water. Born out of a need to provide US Navy helicopter pilots with a small, handheld breathing device the Heed 3 has been saving lives since 1979. Ideal for all helicopters, fixed wing aircraft, float planes, watercraft and vehicles that operate around possible water emergencies. Over 400,000 systems sold worldwide in over 45 years.

Tested & approved by the US Navy.Helicopter Emergency Egress Device (HEED) is a high-quality emergency breathing system produced and tested by people with more than four decades of manufacturing experience. HEED is made in the U.S.A. by craftsmen dedicated to producing a quality product. Enjoy the peace of mind that having the HEED brings.

• Flexible braided hose increases the versatility of HEED 3

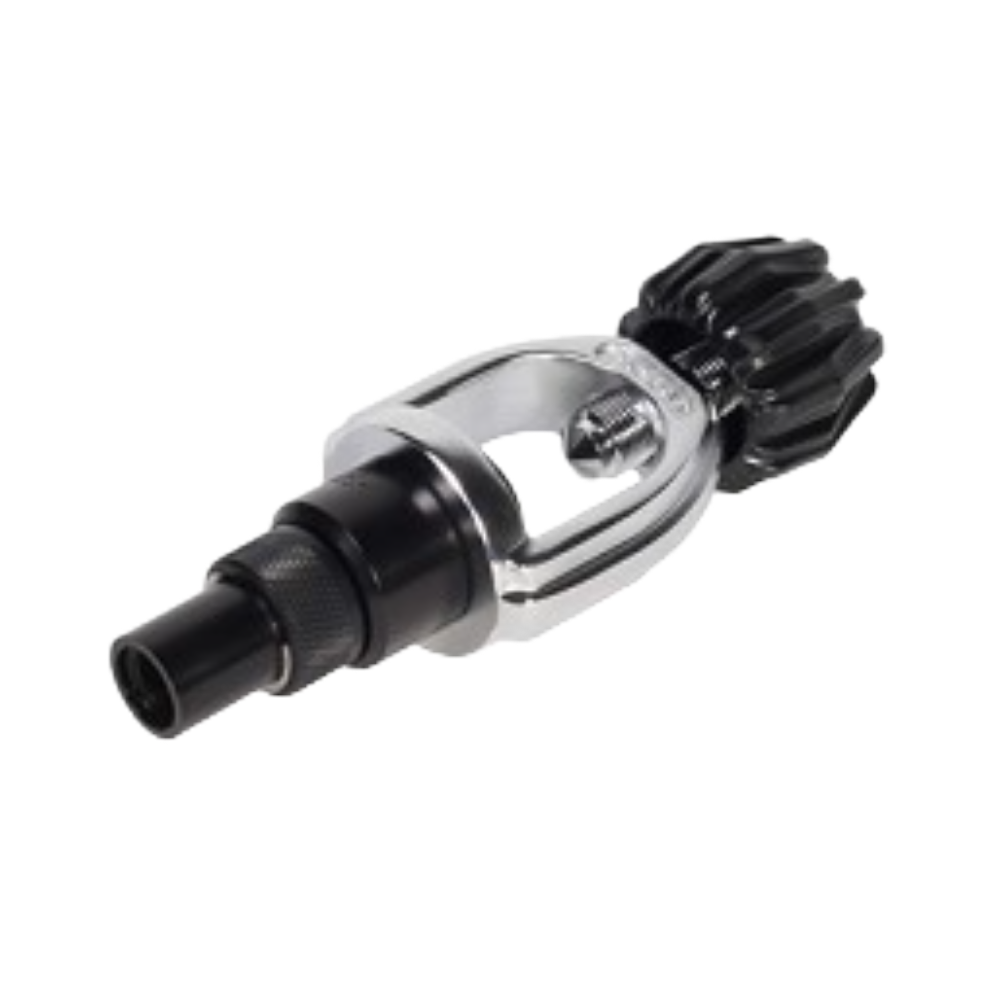

• Refillable from an air compressor (or SCUBA tank using optional adapter)

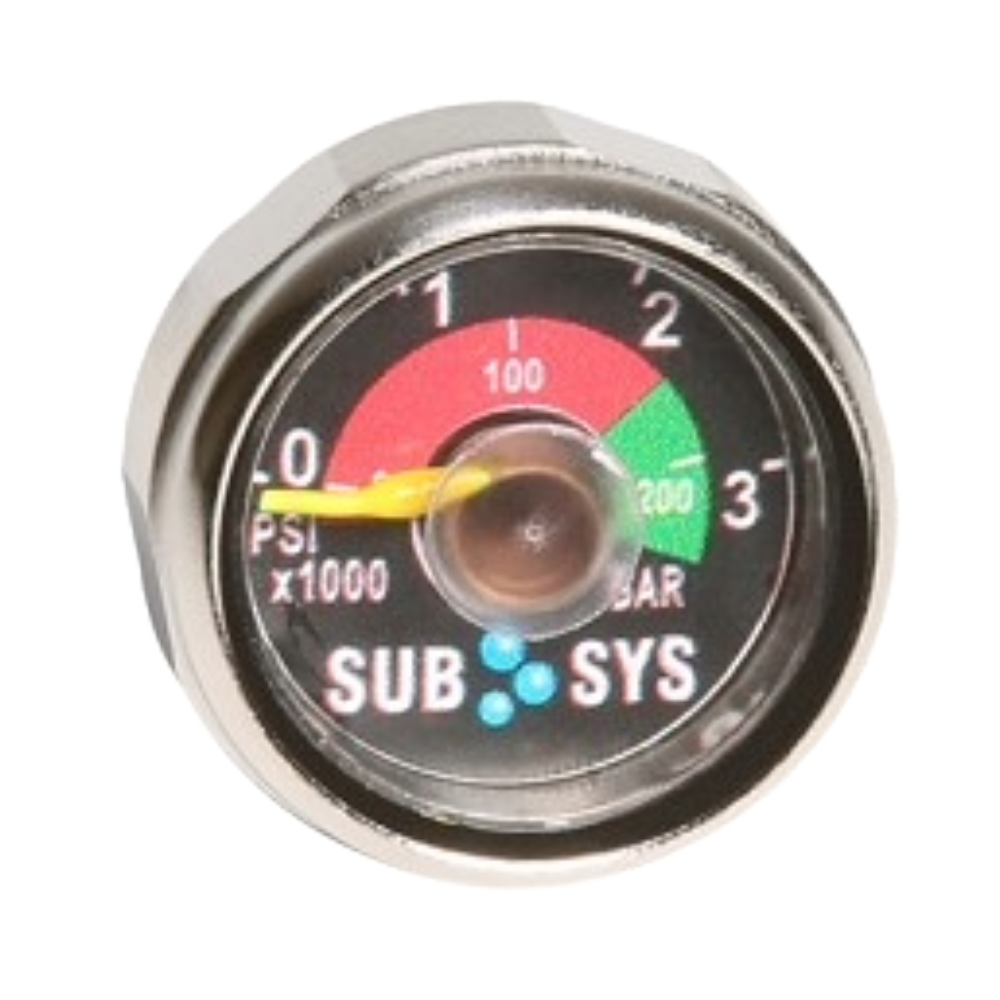

• Deluxe Dial Gauge Pressure Indicator standard on every unit

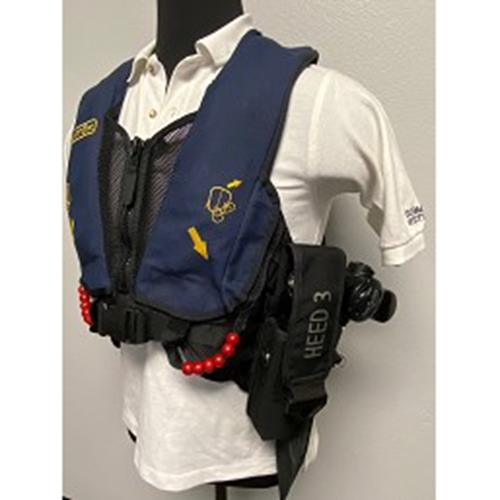

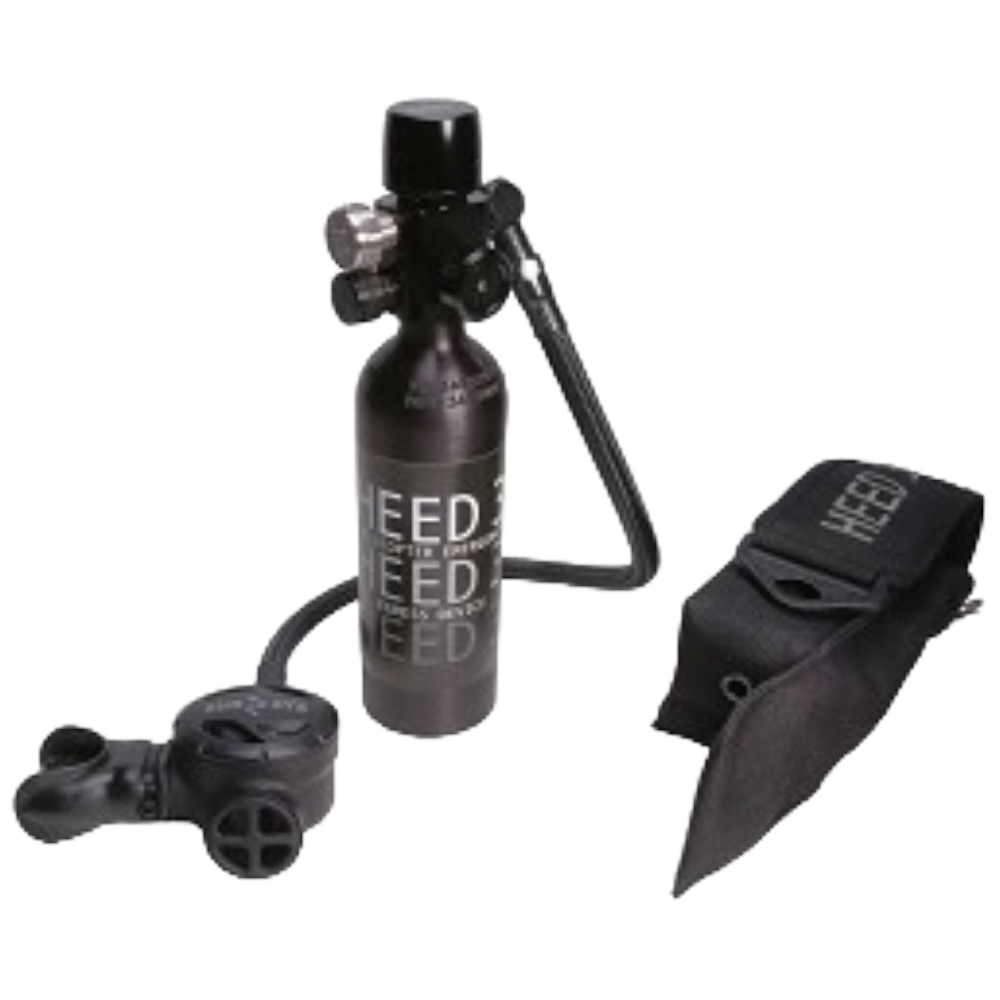

• Sewn hose pouch protects the hose and keeps the system compact and out of way, but allows quick access
• Can be equipped with optional Nose Clip on a Lanyard

Specifications:

• Cylinder Capacity: 2 cu ft / 58 liters
• Service Pressure: 3000 psi / 207 bar
• Length: 9.5" / 24 cm
• Diameter: 2.25" / 5.7 cm
• Weight: 1.5 lb / .7 kg
• Duration of Air*: 38 breaths *Based on 1.5 liters per breath
• Cylinder Material: Aluminum – black anodized
• Regulator Type: Integrated Balanced Single Stage Demand
• Pressure Relief: Integrated in Regulator
• Operational Temperature: -22ºF / -30ºC < +158ºF / +70ºC
• Altitude Limits: Tested at up to 35,000 ft / 10,500 m
• Cylinder Ratingt: DOT 3AL 3000 or CE Marked

Downloads:

 Technical Specifications

 Quick Reference Guide
